FSRV Model Boats   Gas Tuned Pipes    Tiger King engines  Kraken mono   Zenoah Marine Engines   Flexishafts

GENERAL RC HARDWARE BOAT PARTS
WATERCOOLING  AND
FUEL PARTS

tubing
nipples
 pickups
outlets
GENERAL HARDWARE PARTS
hatch fasteners
servo mounts
servo arms
carbon angle
rubber bellows
mounting feet
RADIO LINKAGES
pushrods
clevises
r/c balljoints
This section contains rc rubber bellows seals, servo mounts,  exhaust silicone, hatch fixings and clips, carbon plate and angle, deck handles and hooks, rubber sealing tape, rc boat aerials, airscoops, servo mounts, exhaust mountings,
CNC aluminium pipe mover brackets  for servo adjustable tuned pipes.




TP1   30mm  25.00
TP3   35mm  no stock
25.00

TP5   40mm  no stock
26.00
TP7    50mm  no stock
26.00

..









RNVA1 Radio needle valve. Hardened 4.5mm diameter strong steel needle with 2 o-ring seal. It has a locking nut on the radio arm to adjust the friction on the manual needle. Overall length 45mm wpe98.jpg (57084 bytes)   wpe9A.jpg (69972 bytes) no stock
19.95
WPV Water protection valve for gas boat fuel tanks. Prevents water entering the fuel tank in the event of a capsize etc. This has a brass and stainless steel valve with a float inside the plastic container. It is connected to the air inlet to the tank. If the boat fills with water the float rises to the top and closes off the valve, if the boat capsizes the float drops and closes off the valve. We have used this on our racing boats for years and it is 100% effective.     wpe71.jpg (47308 bytes)wpe71.jpg (37613 bytes)  19.95
GA25 Rubber bellows for radio linkages. (4).  Pack of 4 bellows..

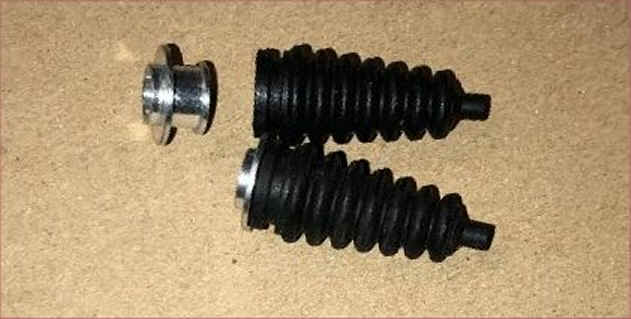

GA26 Rubber bellows for radio linkages through transom to rudder or radio box.. (2).  Pack of 2  bellows  of a new improved type, the best we have found. 13mm diameter with 10mm hole one end and 1.5mm hole the other. 35mm long   wpe1.jpg (21471 bytes) 2.95



GA27 2 x Rubber bellows large diameter for radio linkages. With threaded bolt on aluminium base part.
7.95



GA28 2 x Rubber bellows small diameter for radio linkages. With glue in type aluminium base part.
GA29 Aluminium horizontal exhaust mount for 40mm tuned pipe for use on FSRV and mono's (Prestwich 27cc 15cc pipe wpe74.jpg (34582 bytes)
no stock
15.50

GA29A Aluminium horizontal exhaust mount for 50mm tuned pipe for use on mono's (CS28 pipe) wpe74.jpg (34582 bytes) no stock
14.50
GA30 Aluminium exhaust mount with rubbers 36mm id. wpe6C.jpg (26648 bytes) no stock
16.95
GA31 Aluminium vertical exhaust mount with rubbers 40mm id. wpe6C.jpg (26648 bytes)
no stock
18.95

GA32 Aluminium exhaust mount with rubbers 44mm id. wpe6E.jpg (26648 bytes) 21.95
GA34A PMB Glowswitch. The best programmable glowswitch for up to 7 amps. Plugs into a Y lead on the throttle servo  and switches on the power to the glowplug. Programs easily so that at lowest throttle it is off, at any other position (say 1/8 throttle) it is on and stays on until at a point just below full throttle ( programmed by you), it switches off. Simple single pushbutton setup and setup is retained in the memory.  wpe6A.jpg (44539 bytes) wpe6D.jpg (65060 bytes) 39.95
GA35 Aluminium servo mount clamp type for all MINI servos such as Hitec 225 (servo not included) wpe1C.jpg (48688 bytes)

6.25

GA36 Aluminium servo mount clamp type for all standard servos. (servo not included)     wpeE6.jpg (13338 bytes)

6.95

GA37 Aluminium servo mount clamp type for all 1/4 scale 1/5th  servos. (servo not included)

NEW


7.95

GA38 Servo mount for standard servos, L type aluminium CNC with screws etc.




4.95
GA39 Dual aluminium servo mount for standard servos




GA41 Aluminium servo mount vertical type for all standard servos with 40mm long bodies. (servo not included)  wpe3C.jpg (21682 bytes)

7.95

GA43 Aluminium lightweight, streamlined  strong handle for the side of monos to help with launching.




5.95

GA44 Hatch fastening clips/cowl locks, push down and turn to lock, turn to release. Anodised aluminium.  (2 pcs)




8.50



GA44A MINI Hatch fasteningclips/cowl locks, push down and turn to lock, turn to release. Anodised aluminium.  (2 pcs) small enough for FSRV boats, nitro and brushless boats wpe7E.jpg (88433 bytes) wpe97.jpg (51278 bytes) 6.95



GA45  O-ring type hatch fastening clips/cowl locks. Billet aluminium with all stainless screws and nuts.  (2 sets)    wpe35.jpg (63387 bytes)

6.95

GA45A O-ring spares for GA45  6 pcs  wpeB2.jpg (34099 bytes) 2.50




GA46 2 x  spring loaded hatch clips (2)   26mm long x 16mm wide x 812mm high plus pin 15mm long.   wpeC2.jpg (10627 bytes) 3.50


GA47B  10 sets of button head M4 12 button socket head screws and steel threaded fittings for fuel tank cover and wing fitting.  wpeBA.jpg (44006 bytes)
2.75
GA47A 6 anodised aluminium M4 thumbscrews 16mm long thread wpe8.jpg (22839 bytes) 5.30



GA47C  6 anodised aluminium M4 thumbnuts wpe8F.jpg (118771 bytes) no stock
3.95


GA48  2.4g extended aerial. Plug directly into Multiplex, Hitec, Sanwa, Graupner, FRsky or Futaba receivers. 350mm long wpe9A.jpg (66694 bytes) 3.95
GA49 Radio box access screw in access assembly. Waterproof .
GA50 Radio box access bung. Waterproof .
new
GA51 Fuel nozzle for gas boats. Aluminium with magnetic catch and rubber seal  wpe32.jpg (3677 bytes)   wpe34.jpg (7915 bytes) 9.45
GA52 Small stainless steel polished airscoop/vent. 44mm long 41mm wide 16mm deep        wpe58.jpg (5062 bytes) 2.20



GA53 Large stainless steel polished airscoop/vent. 54mm long 51mm wide 16mm deep        wpe58.jpg (5062 bytes) 2.30

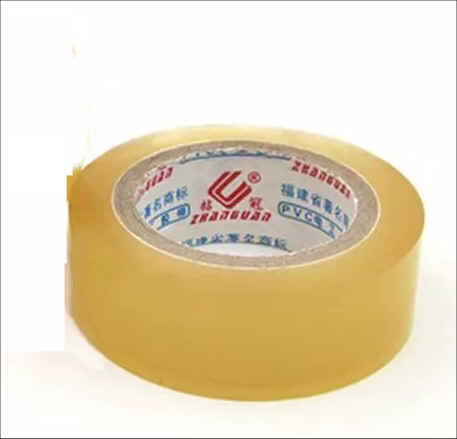

GA55 Radio hatch, radio box box tape. 24mm wide x 25m long roll of waterproof clear tape for radio box sealing and hatch sealing on electric boats. wpe3E.jpg (11549 bytes)

4.95


GA57B 4 x short radio tray mounting feet aluminium M4 15mm long feetsmall2.jpg (124416 bytes)

4.80


A58 4 x long radio tray mounting feet aluminium M3 30mm long wpe6F.jpg (29414 bytes)

5.50

GA59 cnc aluminium radio cover fixing.M4 threaded for fixing under the deck 13mm long. The end is blanked off to stop waterleaks into radio compartment.   wpe74.jpg (11434 bytes) 1.60

GA59A Fuel tank mounting. M4 thread, 16mm high




2.95


GA59B 1 x Lightweight hatch fitting  M3 thread, 6.25mm high, 12mm diameter






GA59C 1 x Lightweight hatch fitting  M4 thread, 6.25mm high, 12mm diameter wpe70.jpg (12662 bytes)  wpe74.jpg (10926 bytes) 1.60

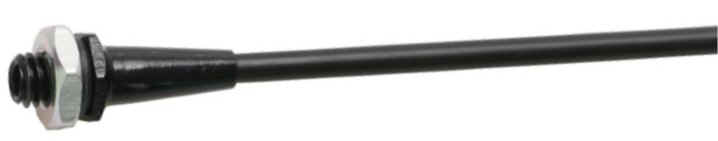

GA61 Boat aerial tube type, suitable for 2.4ghz and  40mhz. Aerial wire fits up inside the tube.  300mm long black base , black tube  wpe107.jpg (6298 bytes) 3.95

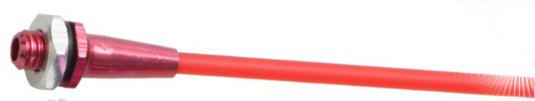

GA61A



Boat aerial tube type, suitable for 2.4ghz and  40mhz. Aerial wire fits up inside the tube.  300mm long red base red tube .wpe10D.jpg (4731 bytes) 3.95

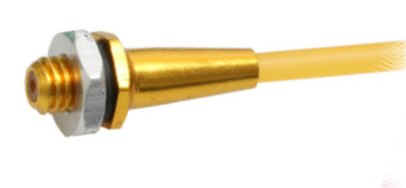

GA61B



Boat aerial tube type, suitable for 2.4ghz and  40mhz. Aerial wire fits up inside the tube.  300mm long. gold base, yellow tube .wpe10F.jpg (5326 bytes) 3.95

GA61C Boat aerial tube type, suitable for 2.4ghz and  40mhz. Aerial wire fits up inside the tube. 300mm long green base, green tube wpe117.jpg (7668 bytes)

.

3.95

GA61D Boat aerial tube type, suitable for 2.4ghz and  40mhz. Aerial wire fits up inside the tube.  300mm long blue base, blue tube .



3.95

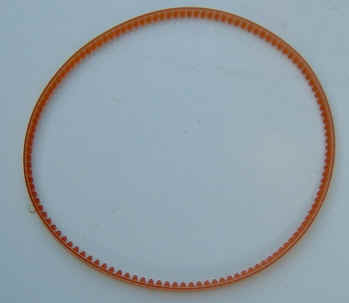

GA63 Starter V belt. Brown, kevlar, cogged, reinforced type. 6mm x 520mm. Suitable for all engines .18 to .91 wpeFE.jpg (7119 bytes)      Click here for engine Equipment

3.75

GA65 High quality waterproof push pull radio switch for futaba, hitec, sanwa, multiplex etc.      wpe88.jpg (48736 bytes) wpe8B.jpg (39389 bytes)

12.95


GA66 Waterproof radio switch for futaba, hitec, sanwa, multiplex etc. includes charging lead    wpe2.jpg (20592 bytes) wpe34.jpg (21033 bytes) wpe36.jpg (26481 bytes)

8.95


GA70  Servo arm cnc aluminium 25T for Futaba, savox, and many others. M3 threads wpe76.jpg (31330 bytes) 1.95

GA70A  Servo arm heavy duty with M3 threads. CNC aluminium 25T for Futaba, savox, and many others wpe89.jpg (36917 bytes) 2.30

GA70B  Double Servo arm with M3 threads. CNC aluminium 25T for Futaba, savox, and many others wpe7F.jpg (37177 bytes) 2.45

GA73 D section closed cell sealing foam for radio hatches etc.   Fix with cyano or impact adhesive     5.95


GA75 O section ( 6mm dia) closed cell sealing foam for radio hatches etc.  Fix with cyano or impact adhesive. Much better seal than D section.    2.95
GA76 Neoprene closed cell sealing foam for radio hatches etc. Self adhesive and bends around corners. 12mm wide 5mm thick. 950mm long      wpeFA.jpg (12407 bytes) 4.95

GA77 Autobailer one way valve for removing water from inside the boat    wpeF0.jpg (20564 bytes) 5.80
GA79 Aluminium deck hook  wpe2E.jpg (7557 bytes) 5.95
GA82 Aluminium deck handle silver wpe30.jpg (5210 bytes) 6.95

GA85 Carbon plate for servo mounts etc. , very stiff.  200mm x 140mm x 2mm thick, shiny both sides. Made with prepreg carbon .
GA90 Carbon angle shiny both sides. 2mm x 190mm x 15mm x 15mm for radio bars, servo mounts etc.


GA91 Carbon angle shiny both sides. 2mm x 190mm x 25mm x 25mm thick for radio bars, servo mounts etc.



GA92 Carbon angle shiny both sides.  190mm x 15mm x 15mm x 1mm thick for radio bars, servo mounts etc.


GA93 Carbon angle shiny both sides.  190mm x 25mm x 25mm x 1mm  thick for radio bars, servo mounts etc.

17.95



GA95 Electric water or fuel pump 6v to 12 volt. (suitable for nitro fuel or petrol)  wpe2C.jpg (5854 bytes) 17.95
GA113 10 plated steel spring clips for 6mm to 7mm od silicone tubing






GA114 10 plated steel spring clips for 7mm to 8.5mm od silicone tubing




GA124 Silicone exhaust tube.  High temperature 100mm long. 13mm, inside. 2.30
GA124A Silicone exhaust tube.  High temperature 100mm long. 16mm, inside. 2.50
GA125 Silicone exhaust tube  suitable for high temperature. 100mm long. 19mm inside. 3.00
GA126 Silicone exhaust tube suitable for high temperature.  100mm long. 22mm inside. 3.95
