                                                                                                                              FLEXISHAFT ASSEMBLIES


Flexishafts and shaft assemblies

Drive dogs
Thrust washers
Stingers Struts Coupling flexis Rudders Surface   Trim tabs
 T-Bars
Turn fins Flexitubes
Teflon liners



EM60

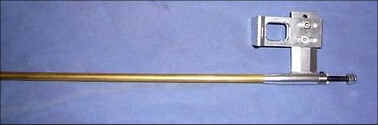

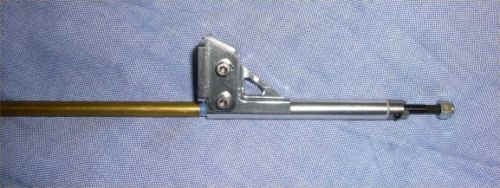

Complete Surface Drive Flexi-shaft assembly for dog drive 4mm bore props with 4mm flexishaft for 540/700 size motors and similar brushless.  Suitable for Hydro's, Deep Vís and Catamarans. Contains 4mm square ended Flexi-shaft with separate 4mm square drive steel stub-shaft, drive dog, brass tube with PTFE teflon tube, strut with lead/teflon bushes, brackets and all nuts, bolts needed. Flexi and stub is 310mm long but can be cut down to length. Longer lengths can be supplied


£27.95
EM60B Same 4mm shaft setup as EM60 but with stinger drive for mono v boats. wpe4.jpg (13154 bytes) £27.95

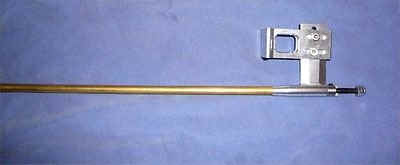

.EM60C

.Same setup as EM60 but with strut and rudder inline.
Contains 4mm square ended Flexi-shaft with separate 4mm square drive steel stub-shaft, drive dog, brass tube with PTFE teflon tube, strut with lead/teflon bushes, brackets and all nuts, bolts needed. Flexi and stub is 310mm long but can be cut down to length.


£36.95

.EM60D

.Same setup as EM60C but with 3/16 shaft
Contains 3/16 welded Flexi-shaft , drive dog, Brass tube with PTFE teflon tube, strut with lead/teflon bushes, brackets and all nuts, bolts needed. Flexi and stub is 400mm long but can be cut down to length.


£39.95

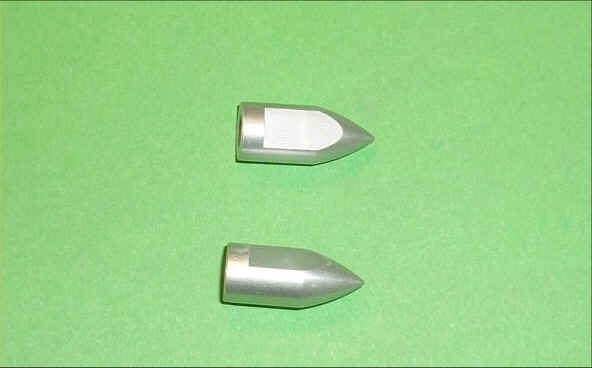

.EM108  1  aluminium tapered nut M4 thread for 4mm propshafts .wpe73.jpg (13858 bytes) £2.50
.EM112 4mm stubshaft for EM60 and EM60B. Square hole on one end for the flexi cable .wpe37.jpg (9030 bytes) £4.50

.EM113A 4mm flexishaft with squared end for EM60 and EM60B .wpe39.jpg (16714 bytes)
£4.60

.EM113B 3/16"  ( 4.87mm)  flexishaft with squared end for Mini Lynx and  Pursuit etc. 300mm long but can be cut down to fit other boats. .wpe39.jpg (16714 bytes) £8.95


HF2 3/16" (4.76mm). Full strut set with flexishaft and stub shaft (0verall length 450mm), drive dog, brass tube, teflon tube liner, cnc machined aluminium strut with steel/ teflon bearings. Can easily be cut down to shorter lengths.
Suitable for mono's, cats and hydro's up to 11cc and brushless motors up to 4000 watts.

Use with HF115 or HF116 rudder




£39.95
HF3 3/16" (4.76mm). Same as HF2 flexishaft but  600mm overall length
Suitable for mono's, cats and hydro's up to 11cc and brushless motors up to 4000 watts.Can easily be cut down to shorter lengths.

Use with HF115 or HF116 rudder



£42.90

HF7  1/4" ((6.35mm) flex shaft assembly up to  25"- 635mm long. Full strut set with flexishaft and stub shaft , drive dog, brass tube, teflon tube liner, cnc machined aluminium strut with steel/teflon bearings.Can easily be cut down to shorter lengths. Suitable for monos, cats and hydros.

USE WITH HF117, HF118 or HF119 rudders

Upgrade to 1/4" stepped down to 3/16 for prop




£45.90

HF8   1/4" ((6.35mm). Same flex shaft as HF7 but up to  32"- 810mm long.
Suitable for mono's, cats and hydro's.Can easily be cut down to shorter lengths.

USE WITH HF117, HF118or HF119 rudders
£49.90

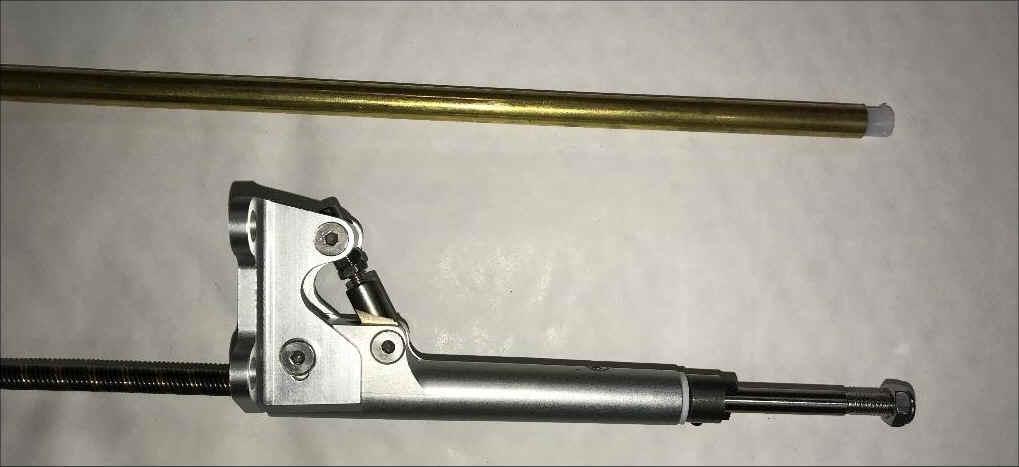

HF9  3/16" (4.76mm). Full stinger set with 18 inch (480mm) flexishaft and stub shaft, drive dog, brass tube, teflon tube liner, cnc machined aluminium strut with lead teflon bearings. Adjustable for angle. Can easily be cut down to shorter lengths.
Suitable for mono's, up to 11cc and brushless motors up to 4000 watts.

Use with HF115 or HF116 rudder

£48.95

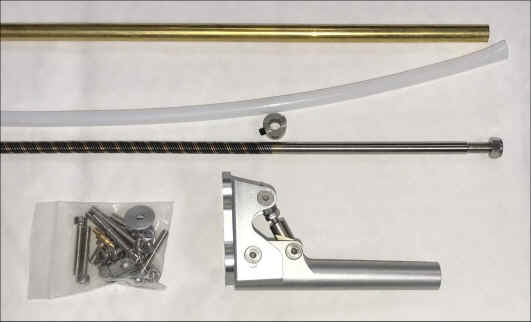

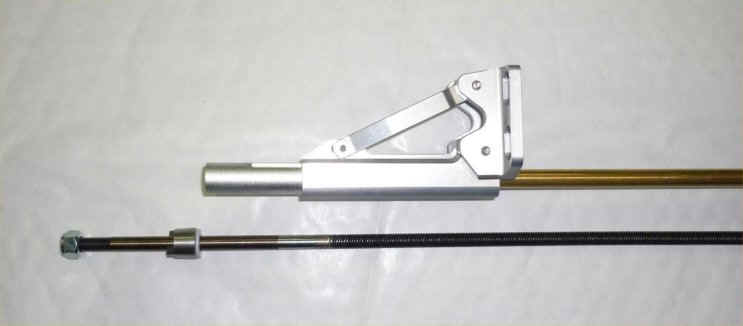

HF10  1/4" (6.35mm). Full heavy duty VS2 stinger set with 25 inch (635mm) flexishaft and stub shaft, drive dog, brass tube, teflon tube liner, cnc machined aluminium strut with lead teflon bearings. Stinger is adjustable for angle. Can easily be cut down to shorter lengths.
Suitable for mono's, 15cc to 32cc and brushless motors up to 7000 watts.
Use with HF117 or HF118 rudder

Upgrade to 32"  shaft and longer tube



£54.95

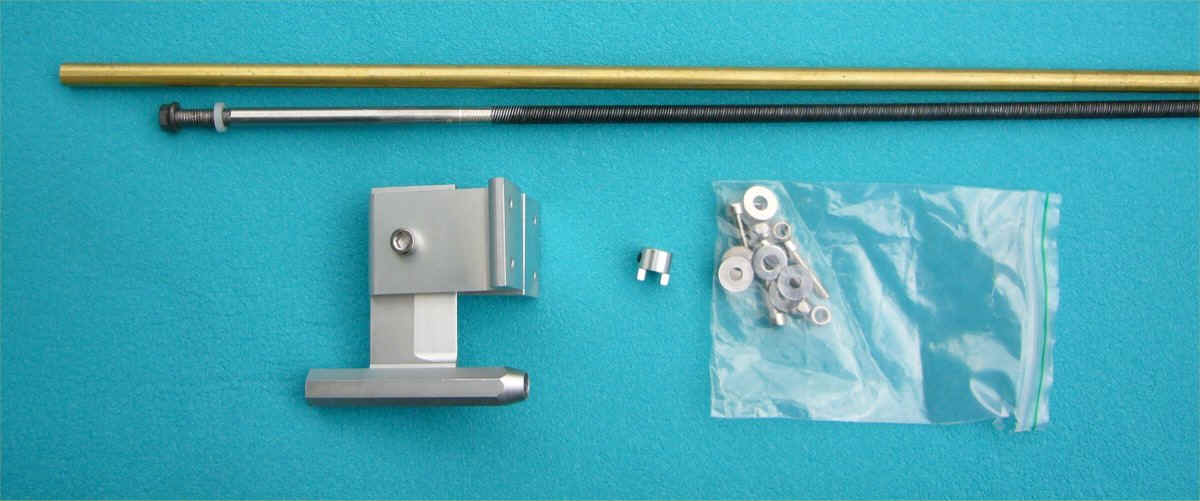

HF17 Complete Surface Drive Flexi-shaft assembly for dog drive 3/16 and 4mm bore props (supplied with 4mm to 3/16 adapter tube) with 4mm flexishaft for 540/700 size electric motors and similar brushless and .12/.15 nitro. Suitable for Hydro's, Deep Vís and Catamarans. Contains 4mm Flexi-shaft with 4mm stainless steel stub-shaft, drive dog, teflon tube liner, strut with lead/teflon bushes, brackets and all nuts, bolts needed. Flexi and stub is 350mm long but can be cut down to length.
More electric hardware here FAST ELECTRICS.
£35.95
HF18 Complete Surface Drive Flexi-shaft assembly with inline strut and rudder plus shaft and tube. Suitable for, Deep Vís and Catamarans. Contains brass tube, teflon tube liner, 650mm flexishaft 1/4 6.35mm diameter, long brackets and rudder assembly. Strut has steel/teflon bushes, brackets and all nuts, bolts are included. Flexi and stub is 650mm long but can be cut down to length. Rudder has 2 water pickups and is 160mm deep. This unit can be used with props up to 85mm diameter.

Upgrade to 32" long shaft and longer tube

£57.95
no stock

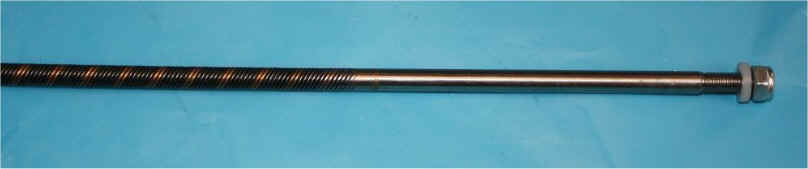

HF32A  Flexishaft 2.3mm flexi with welded3.2 mm stainless steel stub shaft. 300mm long. Replacement shaft for EM60, EM60B, EM60C . £12.50
HF33A UPRATED Flexishaft 3.2mm flexi with welded 4mm stainless steel stub shaft. 300mm long.  . £11.50
HF34 Spare flexi-shaft. 4mm diameter flexishaft and 4mm stub shaft welded. 320mm long wpe48.jpg (3517 bytes)

£11.50
HF34A Spare flexi-shaft. 4mm diameter flexishaft and 4mm stub shaft welded. 450mm long wpe48.jpg (3517 bytes)

£11.50
HF34R Spare flexi-shaft. 4mm diameter flexishaft and 4mm stub shaft welded. 320mm long RIGHT HAND ROTATION wpe48.jpg (3517 bytes)
£12.50
HF35 Spare flexi-shaft  3/16" welded to 3/16 stubshaft,  - 450mm long. wpe48.jpg (3517 bytes)
£16.95
HF36 Spare flexi-shaft. 3/16" welded to 3/16 stubshaft,  650mm long. wpe48.jpg (3517 bytes)
£18.95
HF37 Spare flexi-shaft. 3/16" welded to 3/16 stubshaft, 450mm long. RIGHT HAND ROTATION wpe48.jpg (3517 bytes)
£19.95
HF39 Spare 1/4" flexi-shaft with 1/4" stub shaft,  25" - 635mm  long. wpe39.jpg (10076 bytes)
£16.95

HF42 Spare RH 1/4" flexi-shaft with 1/4" stub shaft,  25" - 635mm  long.
for RIGHT HAND ROTATION
£22.95
HF45 Spare 1/4"flexi-shaft 1/4" stub shaft.,  36" - 950mm  long. wpe39.jpg (10076 bytes)

£23.95

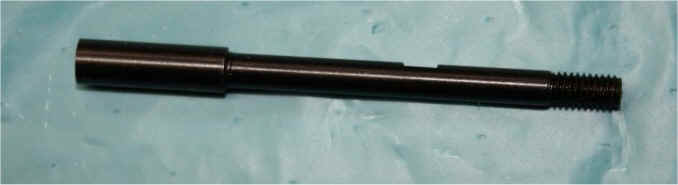

HF49 Spare flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16,  25" - 635mm long. wpe37.jpg (11836 bytes)

£22.00


HF50 Spare RH  flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16,  18" - 450mm long.  Counter rotation wpe37.jpg (11836 bytes)

£22.95


HF51 Spare RH  flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16,  25" - 635mm long.  Counter rotation wpe37.jpg (11836 bytes)

£26.95

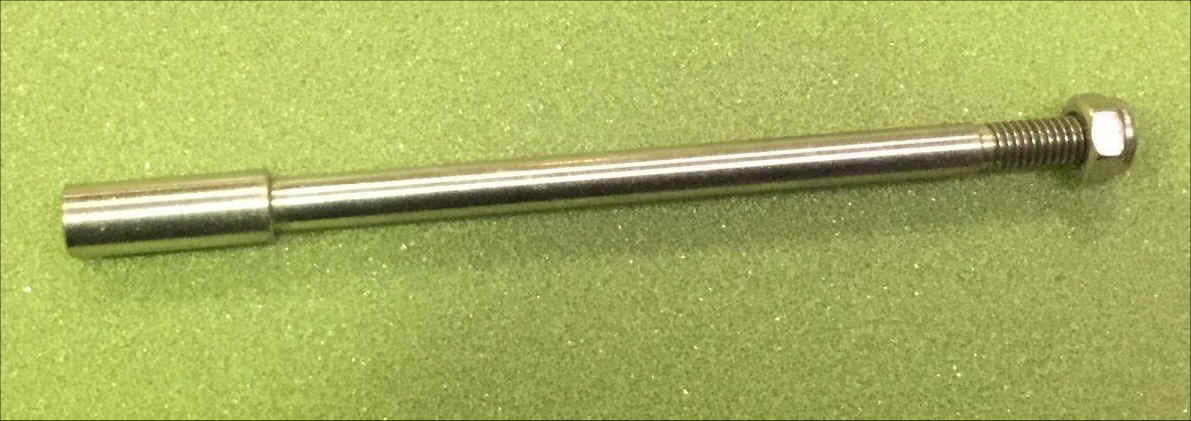

HF59 Round 1/4" stubshaft for flexishaft with one end squared inside.  1/4"  6.35mm diameter, 5mm across the square flats wpeB8.jpg (53656 bytes)
£12.95

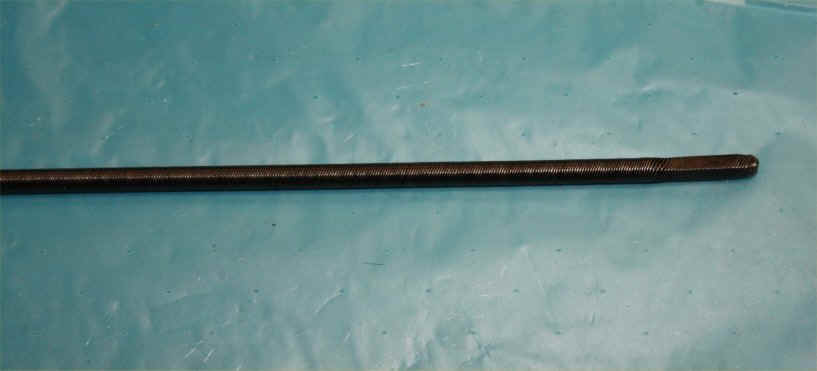

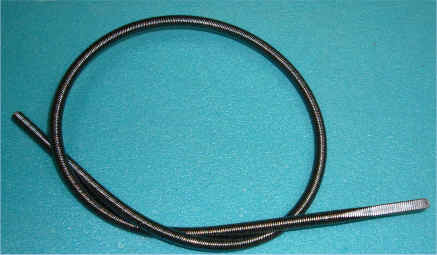

HF60 SQUARE ended 1/4 flexishaft (square is 5mm across flats). 650mm long wpe3D.jpg (12999 bytes)

£11.45


HF61 SQUARE ended  RIGHT HANDED 1/4 flexishaft (square is 5mm across flats). 500mm long wpe3D.jpg (12999 bytes)
£14.75


HF62 SQUARE ended 3/16" flexishaft (square is 4mm across flats). 400mm long wpe3D.jpg (12999 bytes)
£8.95


HF63 SQUARE ended 4mm flexishaft (square is 3mm across flats). 290mm long wpe3D.jpg (12999 bytes)
£6.95
