WHAT THE ENGINE TUNING
PROGRAM KIT DOES.
The program kit is
split into 2 parts: firstly, text and pictures with a full and easy to follow explanation about what is needed to modify an engine to make more power, and
secondly, the computer program which allows you to find the exhaust,
transfer and induction timings (opening, closing and total duration)
using simple measurements from the engine. The computer program shows many
other things too, such as compression ratio, trapped compression ratio,
blowdown and allows you to input different deck heights and base gasket
thicknesses and then see the difference in compression ratios and port
timings..
Modifying an engine to have more power AND have
good throttling and torque is not easy, but this program will help you do just
that. It allows you to log all the port timings from your engine, based on
easy measurements that take just a few minutes to complete. Once this
information is logged into the program, the port timings etc. are displayed
and then you can follow the detailed text showing what can be done to
improve the engine.
This program is suitable
for experts and beginners. A valuable timesaver for the expert and very
easy to use for the less expert engine modifier.
The ETP5 ZENOAH program is unique in that
it allows the port timings to be measured from the base of the cylinder.
Normally, measuring some of the port timings and trapped compression ratio
on these fixed head engines is
relatively difficult, but with this program, the port
timings and compression ratio can be found very quickly and accurately,
and more importantly when the engine is being modified, the port timings
and trapped compression ratio can be found without reassembling the
engine, allowing accurate timing changes to be made in a very short time.
WHAT YOU GET.
1. Software and detailed instructions on
how to use it. Step by step instructions including diagrams
and pictures of the methods used for measuring
the port timings and compression ratio of
your engine. A degree wheel is not needed. You need to input
some basic engine dimensions and simple measurements taken from the base
of the cylinder, and then the software calculates and lists exhaust,
transfer, induction port duration, blowdown, geometric and trapped compression ratio. The program shows the
effect on port timings and compression ratio of changing the exhaust timing and after
removing or adding base gaskets and/or machining the cylinder base.
2.
Complete kit of parts for measuring head
volume, and parts needed to show squish clearance.
3.
Full instructions on how to modify
your engine for more power and/or better throttling.
4.
Full instructions on how to fix
that engine you have modified and which now doesn't want to throttle or pull away from
the shore!
5. Full backup with any questions answered
within 24 hours.
6. Buyers will be registered and will
receive free updates via email as they are available. 7.

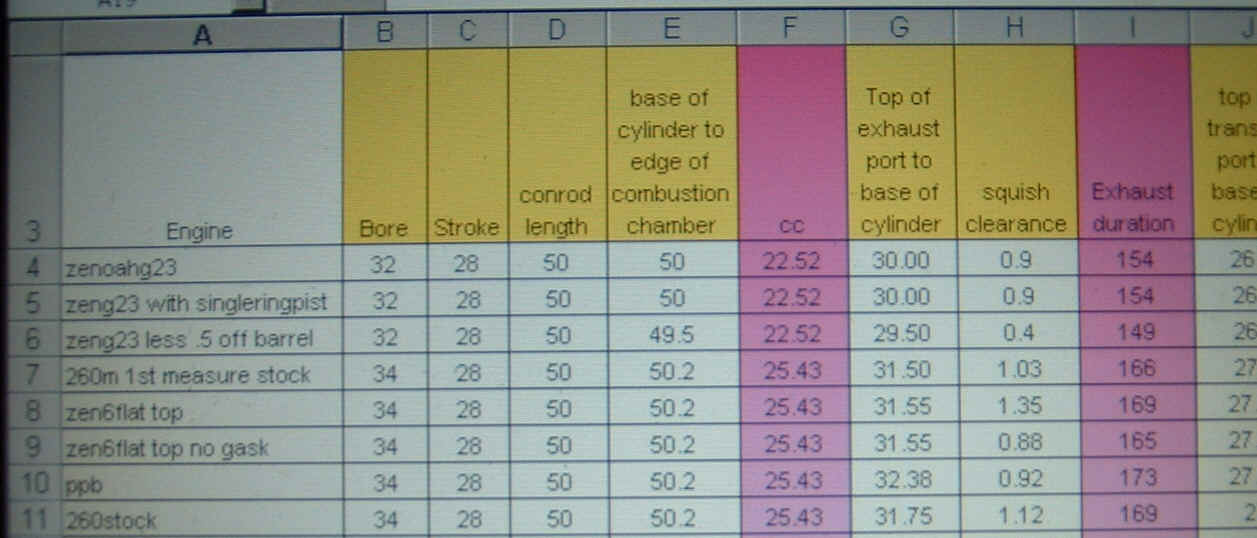

To get you started, there is a standard and a modified engine shown in
the data. |
