SOLID PROPSHAFTS, COUPLINGS, RUDDERS

SECURE ONLINE ORDERING

This section contains Rubber couplings, torgrip and Kalistratov couplings plus ballraced prop shafts all with a sealed ballrace, lead/teflon bush and grease nipple. The propeller shafts are stainless steel with  M5 threads for the props. Skegs are supplied for the shafts. The quiet rubber mounts with silentbloc rubbers will reduce vibration and noise and allow the model engine to be easily fitted and removed. The rudders are all stainless steel and waterproof. The rudder (tiller) arms are strong and mostly double sided.
. QUIET ENGINE MOUNTS .
RM20 .21 to .28 CNC machined motor mounts complete. Designed to fit between 4" wooden rails. wpe1.jpg (9275 bytes)

£18.95
RM21 QUIET ENGINE MOUNT kit. Comprises of  4 x 15mm diameter rubber mounts(RM23), 4 mounting feet, 4 pieces of aluminium angle and all screws,  nuts etc.

 rubber mounts


£13.20
RM22 QUIET Engine Mount kit. Comprises of 4 x 22mm diameter rubber mounts (RM22), 4 mounting feet, 4 pieces of aluminium angle and all screws, nuts etc.

 rubber mounts




£14.20
RM45 CNC machined quiet engine mount for .90 (15cc) engines).CMB 90, Picco 90, OPS 90. Includes mounting plates for glassing into FSRV boats etc  Pre-assembled and ready to use. Will also fit between 5" rails



ZEN532 Zenoah aluminium quick change quiet motor mount fits 5" rails. This motor mount will also fit in boats that have no rails. Contains rubber mounts, mounting plates and all screws etc. zenoahmountht4.jpg (2879 bytes)
£17.95

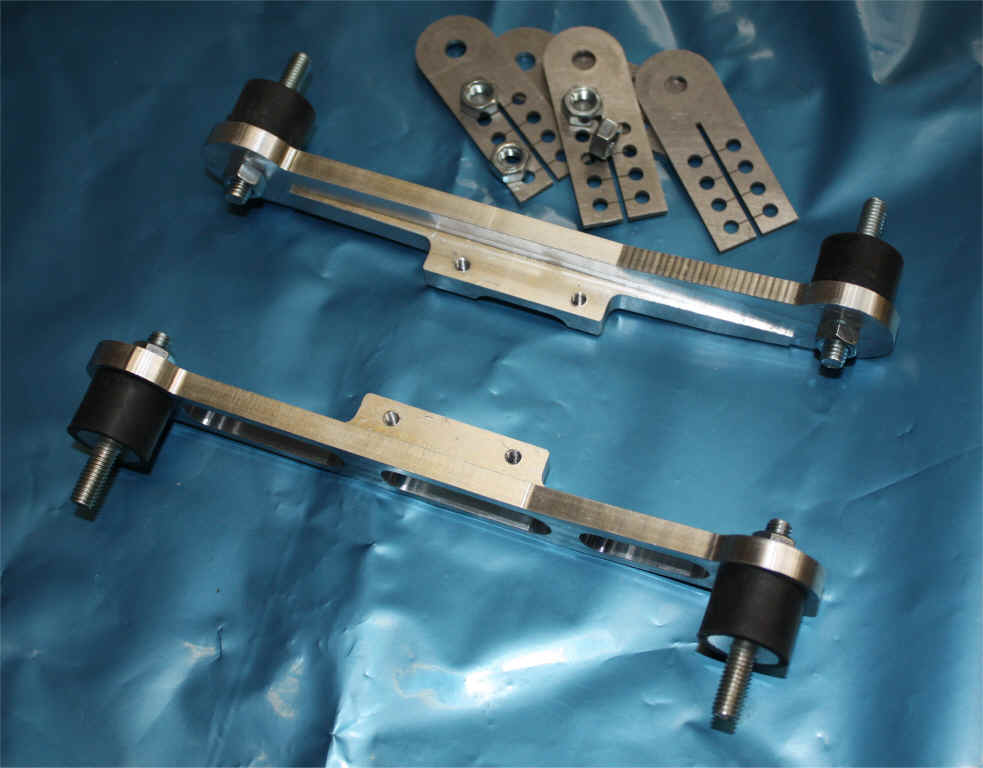

ZEN533 Zenoah CNC machined aluminium quiet motor mount fits 5" rails or freestanding using 4 RM96 plates also SUITABLE FOR FSRV BOATS. Contains rubber mounts, mounting plates and all screws etc.

NEW

£39.95
RM96





 .Engine mounting plates 6mm  for the rubbers


£1.30



M97 Radio tray mounting foot aluminium M4 29mm ling wpe2E.jpg (15439 bytes)
£1.40
RM98 Fuel tank mounting foot for PTT21, PTT45. PTT91. M4 14mm long  wpe30.jpg (5629 bytes)
£1.40
RM99 Radio cover fixing.M4 threaded blind hole for fixing under the deck 8mm long wpe32.jpg (9951 bytes)
£1.40
.  PROP SHAFTS

.

 .
BR69 Ballraced Propshaft  stainless steel 5mm shaft with lead teflon bottom bush, brass tube, brass bearing housing with shielded, stainless steel ballrace, and brass nipple for lubrication. Up to 9" (230mm) long. The tube and shaft can be cut to length to make a tube length of  between 3" up to 9" . Propeller thread is M5, coupling end of shaft is plain 5mm. wpe4.jpg (4924 bytes)

£16.50
BR70 Ballraced Propshaft  stainless steel 5mm shaft with lead teflon bottom bush, brass tube, brass bearing housing with shielded stainless steel ballrace, and brass nipple for lubrication. Up to 14" (360mm) long. The tube and shaft can be cut to length to make a tube length of  3" up to 14" . Propeller thread is M5, coupling end of shaft is plain 5mm. wpe4.jpg (4924 bytes) £17.80
BR71 Ballraced Propshaft  stainless steel 5mm shaft with lead teflon bottom bush, brass tube, brass bearing housing with shielded, stainless steel ballrace and brass nipple for lubrication. Up to 17" (430mm) long. The tube and shaft can be cut to length to make a tube length of  between 3" and 17" . Propeller thread is M5, coupling end of shaft is plain 5mm. wpe4.jpg (4924 bytes) £18.80
BR72 Ballraced Propshaft  stainless steel 5mm shaft with lead teflon bottom bush, brass tube, brass bearing housing with shielded, stainless steel ballrace and brass nipple for lubrication. Up to 22" (560mm) long. The tube and shaft can be cut to length to make a tube length of  between 3" and 22" . Propeller thread is M5, coupling end of shaft is plain 5mm. wpe4.jpg (4924 bytes) £20.80

NO STOCK
BR74     SPARE 5mm PROPELLER SHAFT for BR69.  threaded one end M5. 10 inches long

£3.50
BR75     SPARE 5mm stainless steel PROPELLER SHAFT for BR70 with nut and thrust washer. 16 inches long.

£4.00
BR76    SPARE 5mm stainless steel PROPELLER SHAFT for BR71 with nut and thrust washer. 19 inches long

£4.50
BR77    SPARE 5mm stainless steel PROPELLER SHAFT for BR72 with nut and thrust washer. 23 inches long

£4.95
BR21 Spare 16mm od x 5mm id stainless steel ballrace  for BR69/70/71/72 propeller shaft.


 £2.75
BR22 Spare 5mm TEFLON thrust washers  for all 5mm ballrace shafts  (2) £1.00
BR23A Spare 5mm bore x 7mm od Lead/teflon bushes for all ballraced shafts 8  4 pcs.


 £2.95
. COMPETITION BALLRACE propshaft    Click here to go to the FSRV site  FSRVPARTS . .
.  COUPLINGS for solid shafts

.For Flexi Shaft couplings  Click here

 .
RC6A RUBBER COUPLING.M6 to 5mm plain For 2.5cc to 10cc engines. Bonded rubber centre with aluminium ends, 20mm diameter, 65mm long


 £10.95
RC6B RUBBER COUPLING.1/4 unf to 5mm plain For 2.5cc to 10cc engines. Bonded rubber centre with aluminium ends. 20mm diameter, 65mm long


 £10.95
RC6D RUBBER COUPLING. For 2.5cc to 10cc engines. 5/16 UNF to 5mm plain. Bonded rubber centre with aluminium ends. 20mm diameter, 65mm long


 £10.95
CNC2 RUBBER COUPLING. 5mm plain to 5mm plain, 32mm long 20mm diameter. CNC machined ends with rubber star centre. Very strong and accurate coupling.


 £15.95
CNC2A Spare rubber star centre for CNC2



£2.95

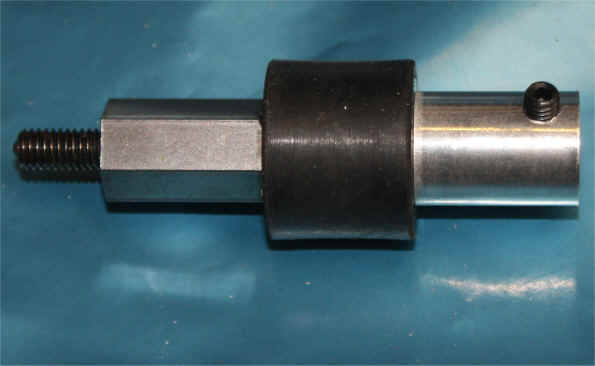

RC7B RUBBER model engine COUPLING. For 11cc to 25cc engines. M8 to 5mm plain.  25mm diameter, 70mm long


 £11.95
RC7D RUBBER model engine COUPLING. For 11cc to 25cc engines. 5/16 UNF to 5mm plain. 25mm diameter, 70mm long


 £11.95
CNC6 RUBBER COUPLING. CNC aluminium ends with aluminium flywheel. to fit Zenoah RCMK etc to 5mm plain  shaft


£21.95
RC7Z RUBBER model engine COUPLING. Zenoah, Sikk, CY, RCMK gas engines to 5mm plain. 25mm diameter, 70mm long


 £14.95
HC1 HUCO type coupling 3.2mm bore to 4mm bore

45mm long 14mm diameter


 £6.95
HC2 HUCO type coupling 3.2mm bore to M4 thread

45mm long 14mm diameter


 £6.95
HC3 HUCO type coupling 3.2mm bore to 5mm bore

45mm long 14mm diameter


 £6.95
HC4 HUCO type coupling 5mm bore to 4mm bore

 45mm long 14mm diameter




 £6.95
HC5 HUCO type coupling 5mm bore to M4 thread

45mm long 14mm diameter




 £6.95
HC6 HUCO type coupling 4mm bore to 4mm bore

45mm long 14mm diameter


 £6.95
HC7 HUCO type coupling 5mm bore to 5mm bore

45mm long 14mm diameter


 £6.95
HC8 HUCO type coupling 1/4" bore to 5mm bore

45mm long 14mm diameter


 £6.95
HC9 HUCO type coupling 3.2mm bore to 3.2mm bore

45mm long 14mm diameter


 £6.95
HC10 HUCO type coupling 1/4" bore to 1/4" bore

45mm long 14mm diameter


 £6.95
 . MODEL BOAT RUDDERS . .
WP10 Rudder assembly small. Brass blade and rudder shaft ( 4.87mm dia). Rudder tube is threaded with o-ring seal and can be reduced in length. Double sided rudder arm. rudder blade is 46mm long, 31mm wide at the top, 21mm wide at the bottom    £4.00
WP11 Rudder, medium. Same as above  with blade of 52mm long, 36mm wide at the top, 24mm wide at the bottom.





    £4.25
WP12 Rudder Large. Same as WP10 but with rudder blade size of  60mm long, 40mm wide at the top, 25mm wide at the bottom.







    £4.80
WP13 Rudder Extra large. Same as WP10 but rudder blade size of 70mm long, 45mm wide at the top, 25mm wide at the bottom.





    £4.95

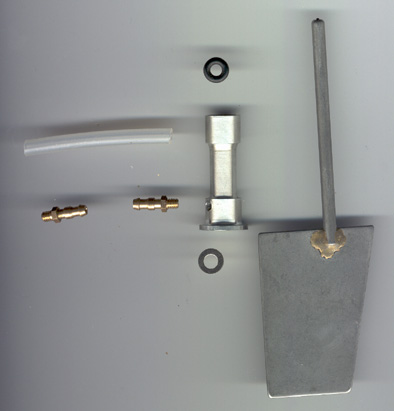

WP22 Rudder small, waterproof with water overflow system. Body has Ina top seal with CNC aluminium body, 2 sintered bronze oilite bushes.  5mm hard stainless shaft bronze welded to laser cut stainless steel blade rudder blade 55mm deep for 3.5cc      wpe5.jpg (10578 bytes)  wpe8.jpg (5087 bytes) £19.95
WP23 Rudder medium, waterproof with water overflow system. Body has Ina top oil seal with CNC aluminium body, 2 sintered bronze oilite bushes.  5mm hard stainless shaft silicon bronze welded to laser cut stainless steel blade rudder blade 65mm deep, 41 wide at top,  31 wide at bottom. for 7.5cc      wpe5.jpg (10578 bytes)  wpe8.jpg (5087 bytes) £19.95
WP24  Rudder large, same as above but larger size for .90 and gas boats boats.Body has Ina top seal with CNC aluminium body, 2 oilite sintered bronze bushes.  5mm hard stainless shaft silicon bronze welded welded to laser cut stainless steel blade. Rudder blade  71mm deep. for 15cc T5, T6 and gasboats.     wpe5.jpg (10578 bytes)  wpe8.jpg (5087 bytes) £19.95

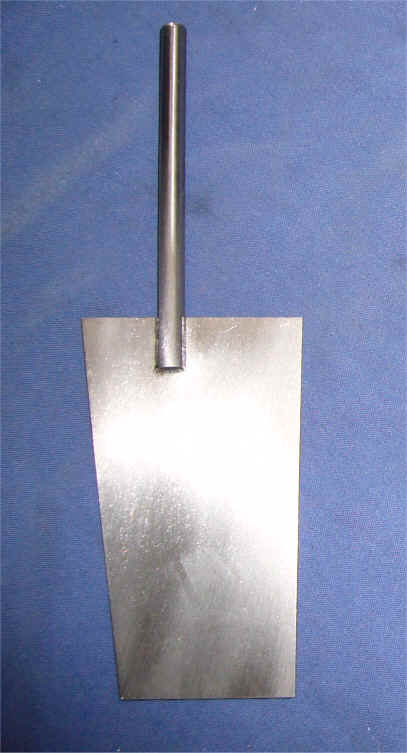

WP3 Stainless steel 5mm shaft silicon bronze welded to laser cut stainless steel blade. Rudder blade 55mm deep blade for 3.5cc small             wpeA.jpg (23812 bytes) £6.50
WP4 Stainless steel 5mm shaft silicon bronze welded to laser cut stainless steel blade. Rudder blade 65mm deep blade for 7.5cc  medium.  VERY strong             wpeA.jpg (23812 bytes) £6.50
WP5 Stainless steel 5mm shaft silicon bronze welded to laser cut stainless steel blade.  71mm  Large for 15cc and gasboats. VERY strong             wpeA.jpg (23812 bytes) £6.50
WP6C Double sided rudder arm. 3/16 to 5mm bore. wpe58.jpg (2363 bytes) £1.25
WP6A Aluminium CNC machined double-sided rudder arm, 5mm bore. wpe17.jpg (13293 bytes) £3.00
This page includes model engine couplings with replacements for huco, 2ba shaft, merco, hp marine, cmb couplings, power boat, quiet engine mount, ballrace propeller shaft, waterproof rudder, Rudder arm, tiller arm, torgrip coupling, cardan, ball and socket, model engine mount, rubber engine mount, silentbloc, lord mounts, propshaft prop 2 ba 4ba shaft m5 m4 4mm 5mm.
