| GB1A |

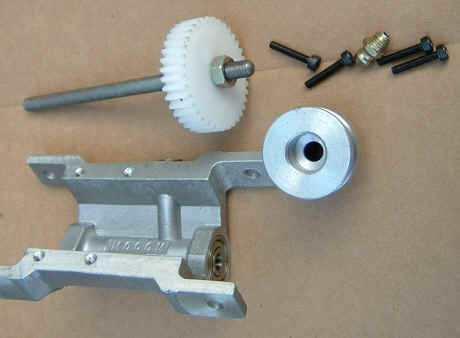

MOCOM 3.5cc gearbox 3.5cc with
standard 2:1 ratio 18T x 36T. Complete
with aluminium body, flywheel/drive gear, lower Mod 1-10mm wide delrin gear,
6mm drive shaft, bearings etc. WHEN ORDERING, PLEASE TELL US FOR WHICH ENGINE THE GEARBOX IS REQUIRED. |
  |
£70
|
| GBV2A |
MOCOM Valvola
gearbox complete. APPROVED BY CMB. This is a new CNC machined aluminium
gearbox body with 16mm stainless steel shielded ballraces with oil feed to
each bearing. This is a lightweight perfect design for the
Valvola engine making the engine sit lower in the boat than any other
gearbox on the market. Complete with 14T top steel gear and
flywheel,, 27T bottom delrin gear, aluminium gear carrier and 10mm wide
gears for strength. Can be used as shown with a coupling or with a straight through 5mm shaft. |
|
£79.00
|
| GB25A |

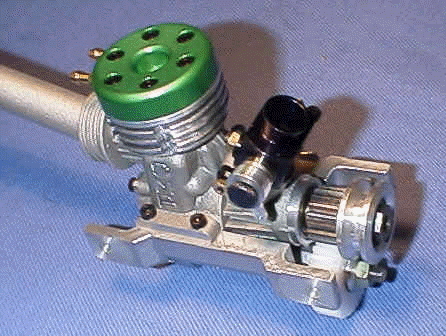

Gearbox
for CMB 45 engines EVO and EVO2/2
APPROVED BY CMB Lightweight aluminium housing with 7mm diameter main nitrided
steel shaft. Gears are 10mm wide with very small diameters to enable
the engine/gearbox to be fitted very low in the boat for best stability.
The lower delrin gear can easily be changed and is held onto the steel
gear carrier by three high tensile screws. The main bearings are 7x19x6.
The steel drive gear is not included. |
|
£69.00
|
| GB25RS |
Same as GB25
but machined to fit the RS45 only.
NEW CNC lightweight machined aluminium housing with 7mm diameter main nitrided
steel shaft. Gears are 10mm wide with aluminium gear carrier.
The lower delrin gear can easily be changed and is held onto the gear carrier by three high tensile screws. The main bearings are 7x19x6. |
|
£69.00
|
| . |
. |
. |
. |
| |
3.5cccc GEARBOX
SPARES |
. |
. |
| GB22 |

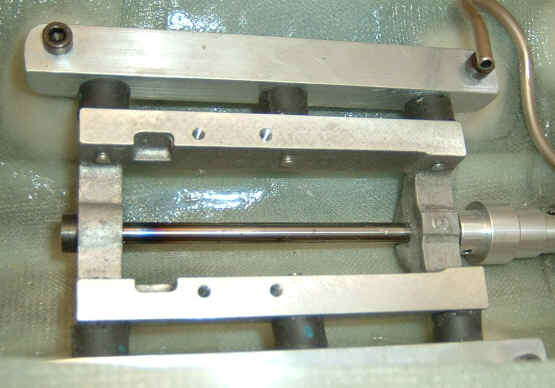

Gearbox rubber mount kit complete.
4 short RM8 rubber mounts, 2 alloy angles, 4 M4 mounting feet and screws. |
. |
£10.95
|
| GB4 |
Gearbox output shaft (6mm
diameter). |
 |
£7.95
|
| GB7 |
Flywheel, steel gear
and collet. 18T |
 |
£21.00
|
| GB7A |
Flywheel, steel gear
and collet. 19T |
. |
£21.00
|
| GB14 |
35 tooth delrin
gear 9mm bore 10mm wide, 3.5cc |
|
£8.00
|
| GB9 |
36 tooth delrin
gear 9mm bore, 10mm wide, 3.5cc |
.
|
£8.00
|
| GB9A |
37 tooth delrin
gear 9mm bore , 10mm wide,
3.5cc |
.
|
£8.00
|
| GB10 |
38 tooth delrin
gear 9mm bore, 10mm wide,
3.5cc |
.
|
£8.00
|
| GB10A |
39 tooth delrin
gear 9mm bore, 10mm wide,
3.5cc |
.
|
£8.00
|
| GB13 |
Stainless steel replacement
ballrace for GB1A. 6x19x6. |
. |
£3.95
|
| . |
. |
. |
. |
| . |
VALVOLA
GEARBOX SPARES |
. |
. |
| GBV3 |
14 Tooth steel gear, flywheel
and cone. |
|
£18.00
|
| GBV26 |
26T
delrin gear 5mm bore |
|
£8.95
|
| GBV27 |
27T delrin gear
5mm bore |
|
£8.95 |
| GBV31 |
2 ballraces 5mm id x 16mm od.for
the GBV2A Valvola gearbox |
|
£7.50 |
| GBV32 |
Hardened mainshaft |
. |
£5.00 |
| GBV33 |
Gear carrier and screws. |
|
£8.00 |
| GB22 |
Gearbox rubber mount kit
complete. 4 short RM8 rubber mounts, 2 alloy angles, 4 M4 mounting feet
and screws. |
. |
£10.95 |
| . |
. |
. |
. |
| . |
7.5cc GEARBOX SPARES |
. |
. |
| GB22A |
Gearbox
rubber mount kit complete. 4 RM9 rubber mounts, 2 alloy angles, 4 mounting
feet and socket cap screws. |
 |
£11.00
|
| GB8 |
Flywheel
and steel gear, 20T tooth (cone included). Fits all 45 EVO and
EVO2/2 and RS engines |
 |
N/A
|
| GB8A |
Flywheel
and steel gear, 21T tooth (cone included).Fits all 45 EVO and EVO2/2 |
 |
N/A
|
| GB8B |

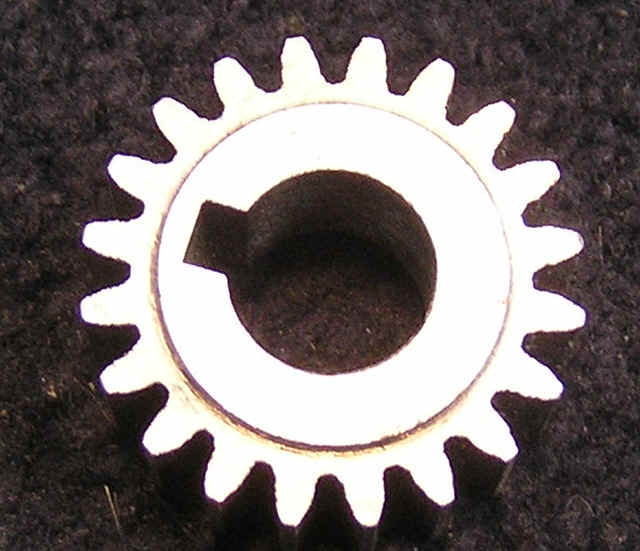

20T
steel gear for CMB 45 RS. |
. |
£18.50
|
| GB8C |

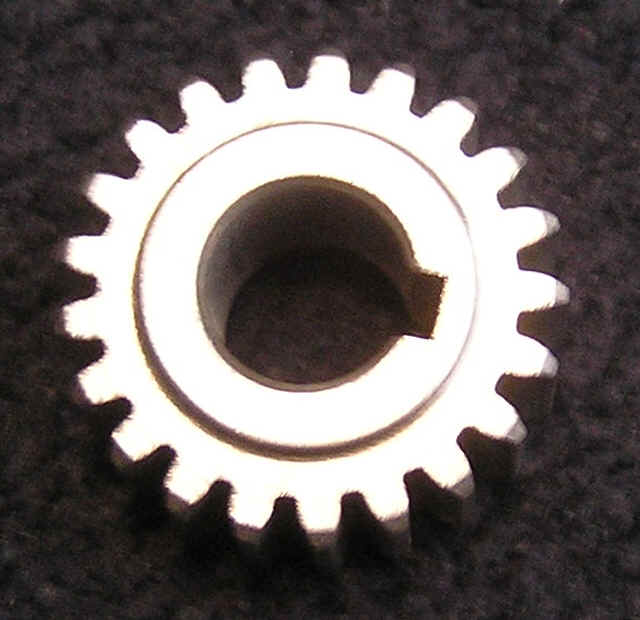

21T
steel gear for CMB 45RS |
. |
£18.50
|
| GB26 |
Spare
delrin gear for GB25. 7mm bore, 10mm wide. predrilled, 30T |
 |
£8.50
|
| GB27 |
Spare
delrin gear for GB25..7mm bore, 10mm wide. 31T |
|
£8.50
|
| GB27A |
Spare
delrin gear for GB25..7mm bore, 10mm wide. 32T |
|
£8.50
|
| GB27B |
Spare
delrin gear for GB25..7mm bore, 10mm wide. 33T |
|
£8.50
|
| GB29 |
Gear
carrier for GB25 |
|
£7.95
|
| GB30 |

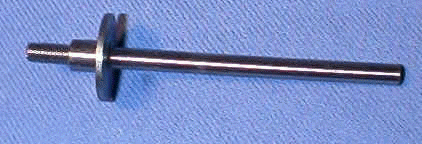

Lower
gear-shaft, 7mm diameter nitride hardened steel with welded end
collar. |
. |
£6.50
|
| GB701 |
Standard
bearing for 7.5 gearbox. 7x19x 6 stainless steel |
|
£3.95
|
