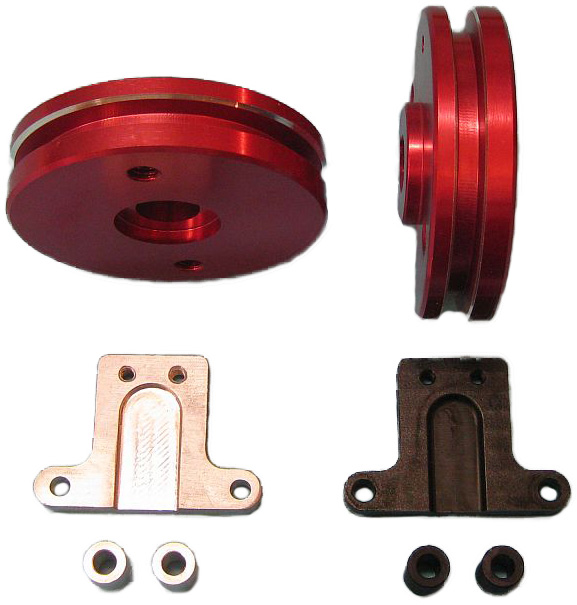

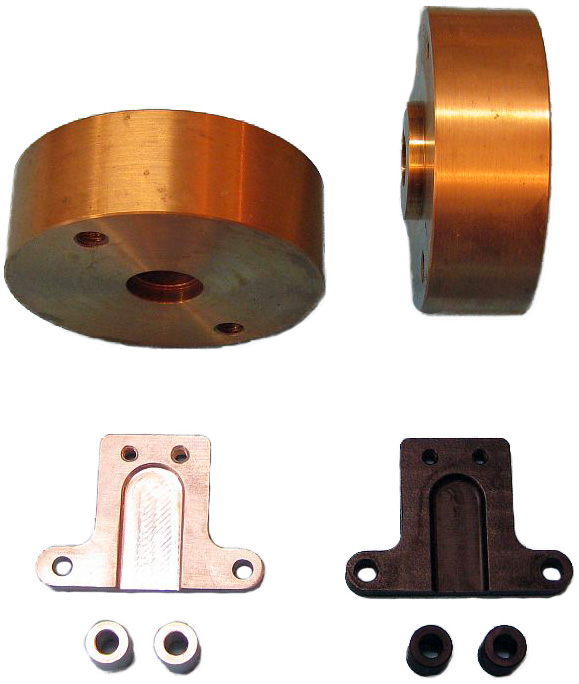

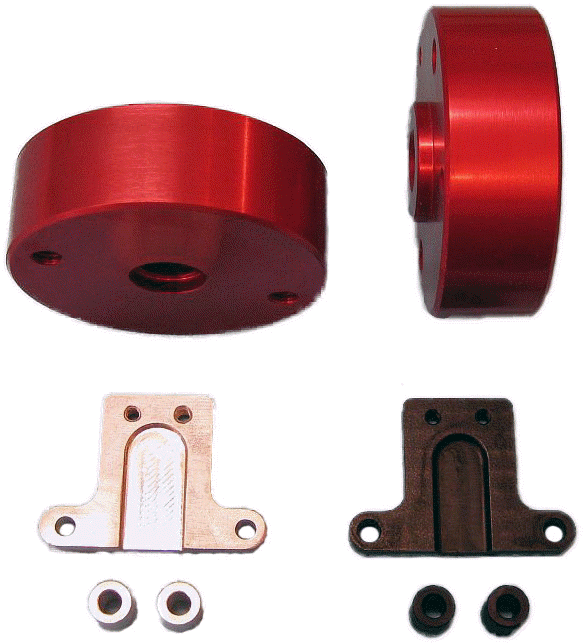

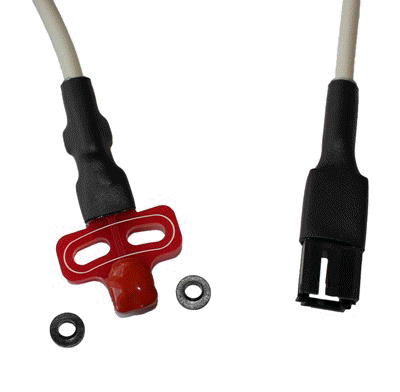

POWERFUL ELECTRONIC IGNITION UNITS. Easy to fit with custom fitting kits for Zenoah, RCMK, QD and SIKK, single and twin cylinder engines. The system consists of a lightweight flywheel with a magnet installed and a sensor pickup with custom made mounting. The electronic module is completely waterproof using a smoked glass screen with a digital display showing rpm and program information. The system operates on 4volts to 12 volts and can be supplied by the existing receiver battery or a small separate battery.

■  micro processor controlled, high precision electronic ignition system
  ■  speed up to 30000rpm with one or more cylinder engines
  ■  supply voltage 4-12V
  ■  constant spark energy in the complete speed and voltage range
  ■  2-digit brilliant red LED display
  ■  separate ignition endstages => consumes little current when using multiple cylinders,
      (because additional cylinders ignite separately and not parallel to the first one)
  ■  ignition offset for multiple cylinder engines: 0°/180°
  ■  no need of an additional battery pack, ignition system can be supplied from the receiver battery pack
  ■  ignition starts at a minimum speed (safe start-up)
  ■  easy to change parameters with programming magnet (included)
  ■  numerous customization possibilities
  ■  high-grade, red anodized aluminum housing
  ■  waterproof

    Adjustment and monitoring

  ■  10 pre-programmed ignition maps
  ■  application of 5 custom ignition maps: each with 4 sampling points
  ■  adjustable speed sensor offset (compensates mechanical displacement of speed sensor)
  ■  adjustable ignition energy (3 steps)
  ■  free programmable engine speed limit (generation of ignition misses when exceeding limit)
  ■  2nd ignition endstage configurable as switching output
      (speed dependent or error dependent (engine shutdown)
