| GB1NA |
MOCOM 3.5cc gearbox 3.5cc with
standard 2:1 ratio 14T x 28T. Complete
with CNC machined aluminium body, flywheel/drive gear, lower Mod 1-10mm wide delrin gear,
5mm drive shaft, bearings etc.
NOTE. You can specify the gears you want on the gearbox. |
 |
£79.00
|
| GBV2A |

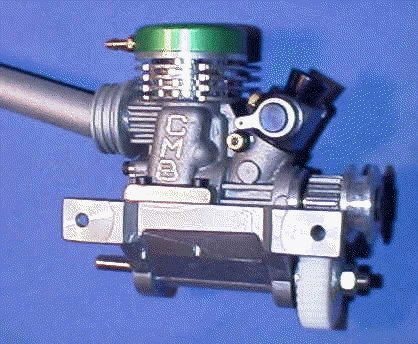

MOCOM Valvola/VAC
21 and RSV EVO 21 gearbox complete. APPROVED BY CMB. This is a new CNC machined aluminium
gearbox body with 16mm stainless steel shielded ballraces with oil feed to
each bearing. This is a lightweight, perfect design for the
Valvola and RSV engine making the engine sit lower in the boat than any other
gearbox. Complete with 14T top steel gear and flywheel, 27T bottom delrin gear, aluminium gear carrier and 10mm wide
gears for strength. Can be used as shown with a coupling or with a straight through 5mm shaft.
The rubber mounting holes are in the
same position as our old Valvola gearbox and so it can be fitted without
changing gearbox mountings
NOTE. You can specify the gears you want on
the gearbox.
|
|
£79.00
|
| GB25RS |
MOCOM
gearbox for RS45 only.
NEW CNC lightweight machined aluminium housing with 7mm diameter main nitrided
steel shaft. Gear is 10mm wide delrin with aluminium gear carrier.
The lower delrin gear can easily be changed and is held onto the gear carrier by three high tensile screws. The main bearings are 7x19x6. |
 |
£69.00
|
| GB25VAC |
MOCOM
CMB 45 VAC GEARBOX. 3 x full sized
ballraces, 2 ballraces at the gear side. complete with steel gear and
flywheel. 12mm wide gears. 1.54:1 ratio. 7mm hardened shaft.
Other ratios available. |
 |
£82.00
|
| . |
3.5cc
GB1NA
and GBV2A GEARBOX SPARES |
. |
. |
| GB22 |
3.5cc
Gearbox rubber mount kit complete.
4 short RM8 rubber mounts, 2 alloy angles, 4 M4 mounting feet and screws. |
. |
£10.95
|
| GBV14 |
14 Tooth steel gear, flywheel
and cone. |
|
£18.00
|
| GBV15 |
15 Tooth steel gear, flywheel
and cone. |
|
£18.00
|
| GBV16 |
16 Tooth steel gear, flywheel
and cone. |
|
£18.00
|
| GBV17 |
17 Tooth steel gear, flywheel
and cone. |
|
£18.00
|
| GBVNUT |
Special
nut for all 3.5cc gearboxes |
|
£4.00
|
| GBV25 |
25T
delrin gear 5mm bore drilled for gear carrier |
|
£10.95
|
| GBV26 |
26T
delrin gear 5mm bore drilled for gear carrier |
|
£10.95
|
| GBV27 |
27T delrin gear
5mm bore drilled for gear carrier |
|
£10.95 |
| GBV28 |
28T delrin gear
5mm bore drilled for gear carrier |
|
£10.95 |
| GBV29 |
29T
delrin gear 5mm bore drilled for gear carrier |
|
£10.95
|
| GBV31 |
2 ballraces 5mm id x 16mm od.for
the 3.5cc GB1NA and GBV2A Valvola gearbox |
|
£5.50 |
| GBV32 |
Hardened mainshaft 5mm
diameter |
 |
£5.00 |
| GBV33 |
Gear carrier and screws.5mm
bore |
|
£6.95 |
|
CMB
VAC45 7.5cc GEARBOX SPARES |
. |
. |
| GBVA20 |
20T
steel gear for CMB VAC45 |
 |
£19.50
|
| GBVA21 |
21T
steel gear for CMB VAC45 |
|
£19.50
|
| GBVA22 |
22T
steel gear for CMB VAC45 |
|
£19.50
|
| GBVA23 |
23T
steel gear for CMB VAC45 |
|
£19.50
|
| GBVA31 |
31T
delrin gear 7mm bore drilled for gear carrier VAC45 12mm wide |
|
£11.95
|
| GBVA34 |
34T
delrin gear 7mm bore drilled for gear carrier VAC45 12mm wide |
|
£11.95
|
| GBVA35 |
35T
delrin gear 7mm bore drilled for gear carrier VAC45 12mm wide |
|
£11.95
|
| GBVA36 |
36T
delrin gear 7mm bore drilled for gear carrier VAC45 12mm wide |
|
£11.95
|
| GBVA89 |
Hardened mainshaft 7mm
diameter VAC45 |
|
£6.95 |
| GBVA90 |
Gear carrier and
screws.7mm
bore VAC45 |
|
£6.95 |
|
|
|
|
| . |
CMB
RS45 7.5cc GEARBOX SPARES |
. |
. |
| GB22A |
Gearbox
rubber mount kit complete. 4 RMF26 rubber mounts, 2 alloy angles, 4 mounting
feet and socket cap screws. |
 |
£11.00
|
| GB8 |
20T
steel gear for CMB 45RS |
 |
£18.50
|
| GB8C |
21T
steel gear for CMB 45RS |
. |
£18.50
|
| GB30 |
Spare
delrin gear for GB25A. 7mm bore, 10mm wide. predrilled, 30T |
|
£10.95
|
| GB31 |
Spare
delrin gear for GB25A..7mm bore, 10mm wide. 31T |
|
£10.95
|
| GB32 |
Spare
delrin gear for GB25A..7mm bore, 10mm wide. 32T |
|
£10.95
|
| GB33 |
Spare
delrin gear for GB25A..7mm bore, 10mm wide. 33T |
|
£10.95
|
| GB7GC |
Gear
carrier for GB25A, 7mm bore, aluminium with screws. |
|
£7.95
|
| GB7MM |
Lower
gear-shaft, 7mm diameter x 150mm long nitride hardened steel. |
. |
£6.50
|
| GB607S |
Standard
bearing for 7.5 gearbox. 7x19x 6 stainless steel |
|
£2.95
|
| . |
. |
. |
.
|
