 CMB Marine Engines

CMB SPARE PARTS

CMB marine engines are the world leaders in FSRV marine engines and their engines are used by more racers in circuit racing than any other worldwide. CMB engines have a reputation for ruggedness and high power outputs. All CMB marine engines are watercooled with carb and flywheels where needed. Many CMB engines have needle roller steel conrods including CMB 45, CMB 90, CMB 101.
.

DESCRIPTION

.

CMB21VAC







CMB21VACDM

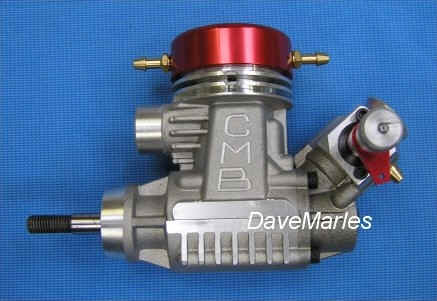

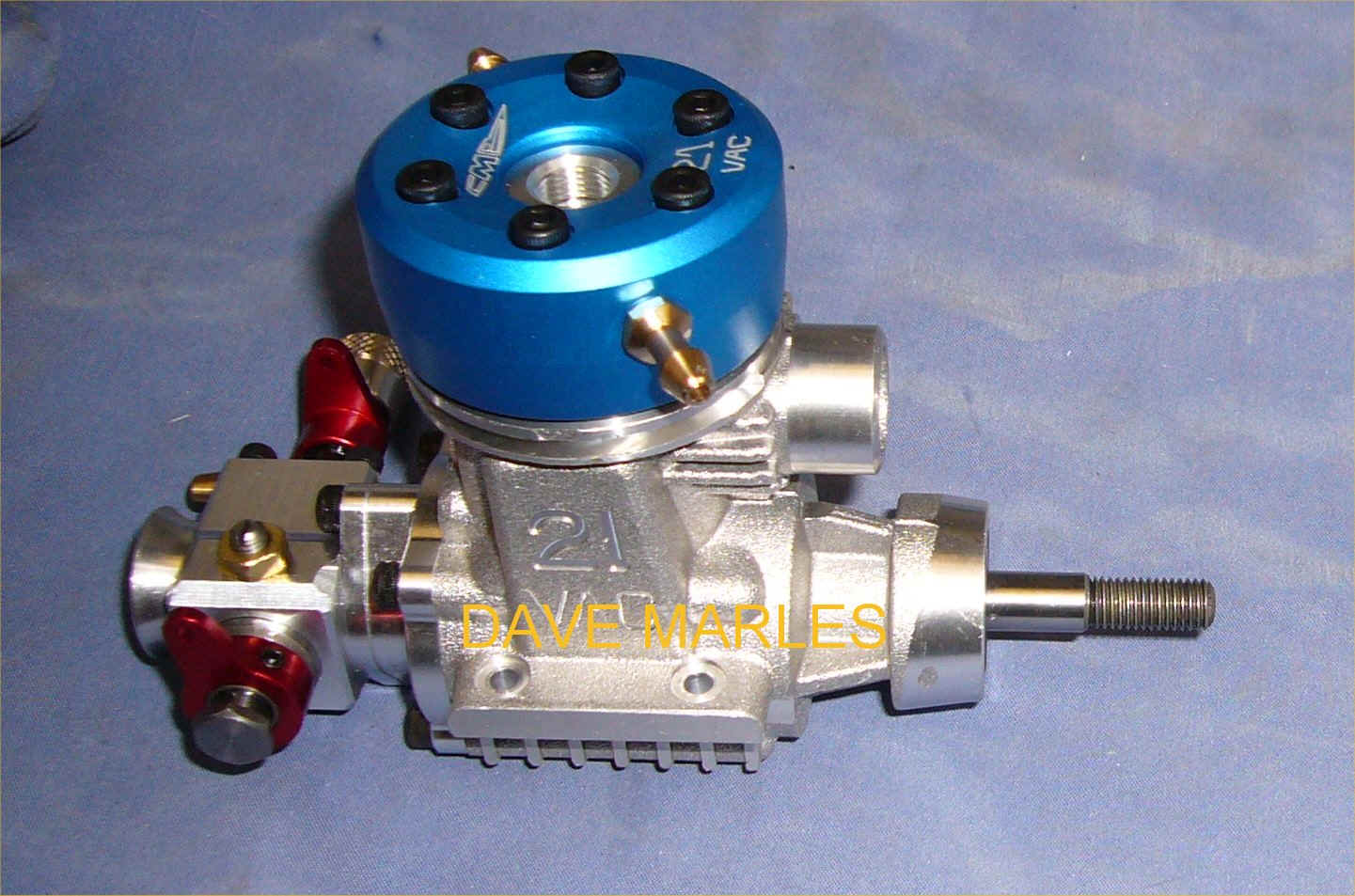

 Latest 3.5cc engine from CMB for gear drive. CMB 21 VAC   NEW DESIGN Drum valve  engine with new design crankcase, piston liner, crankshaft.. Turbo head and radio needle included.



DAVE MARLES Tuned version of  CMB 21VAC. Higher compression ratio, modified drum rotor induction timing and balanced drum with modified liner time areas. This motor has good throttling, plug life and power through the corners.
£335.00






£435.00

CMB21EVO







CMB21EVODM

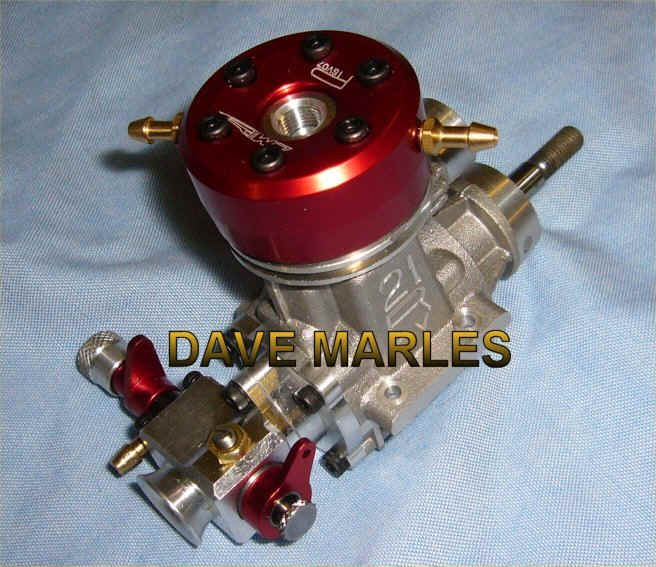

 CMB 21 EVO  For gear drive.  NEW DESIGN Drum valve  engine with new design crankcase, piston liner, crankshaft.. Turbo head and radio needle included.



DAVE MARLES Tuned version of  CMB 21EVO. Higher compression ratio, modified drum rotor induction timing and balanced drum with modified liner time areas. This motor has good throttling, plug life and power through the corners.
£350.00






£449.00


45RSGEAR






45RSDM

 .wpe24.jpg (35051 bytes) CMB 45RS 7.5cc MARINE ENGINE for gear drive. New engine for 2009. Bigger diameter and width crankshaft webs for better stability at high rpm. New much stronger crankcase makes the engine look like the RS91. Red double chambered watercooled head, steel conrod with needle rollers, 4.6 bhp at 31,000 rpm.  Geardrive engine has anticlockwise rotation and carburetor has radio needle included.
DAVE MARLES tuned version. Twin cone plug head, modified watercooling, liner, disc, inlet tract. High power at high rpm with better power through the corners. 5.4 bhp at 29,500 rpm.
£427.00









 £527.00
45VAC REVERSE GEAR

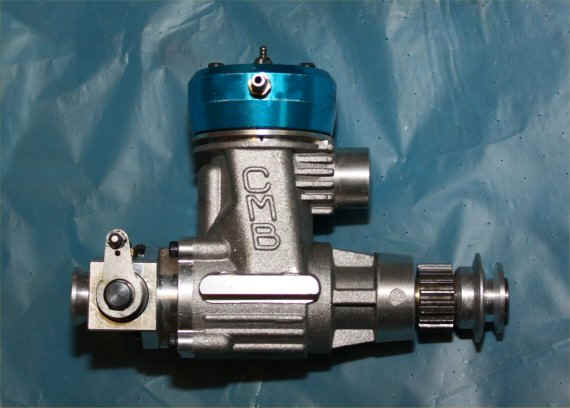

 .wpe67.jpg (20492 bytes) NEW REVERSE CMB 45VAC MARINE ENGINE for gear drive. New version with stronger conrod and new drum rotor with improved timings. (gear not included)



£420.00
45VAC  DIRECT






 .wpe2.jpg (37188 bytes) CMB 45VAC MARINE ENGINE for direct drive. New engine for 2010.



£425.00
RS91

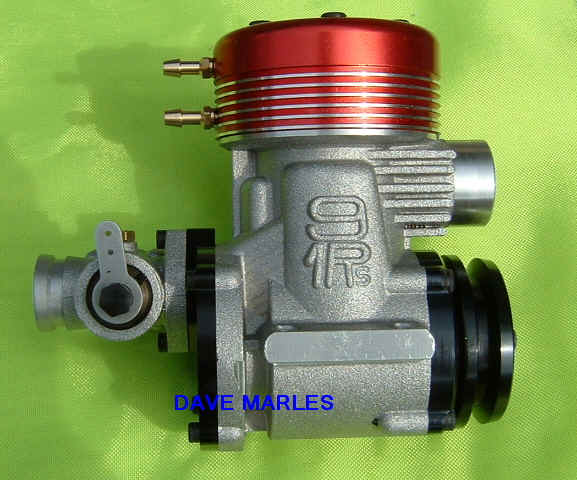

RS91DM		 wpe29.jpg (33815 bytes) CMB90 RS91.  New longer stroke 15cc. Steel conrod, needle roller big end bearing.  Double ballrace supported crankshaft with lightweight zimmerman disc valve, double watercooling chamber for optimum cooling. Radio needle valve included.   RS91pics

 DAVE MARLES tuned version with twin cone plug head, modified liner/piston, modified induction disc and inlet tract. A very high performance 15cc engine.   7.4 bhp at 23,000 rpm.
£495.00






£580.00
RS101 wpe29.jpg (33815 bytes) CMB90 RS101.  New longer stroke 16.6cc  Steel conrod, needle roller big end bearing.  Double ballrace supported crankshaft with lightweight zimmerman disc valve, double watercooling chamber for optimum cooling. Radio needle valve included.
£495.00

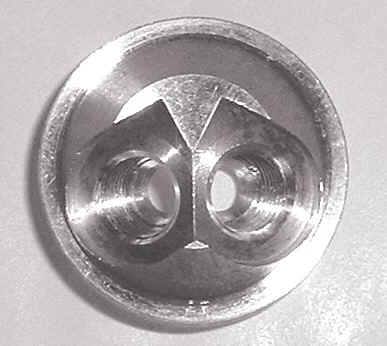

TCH45 NEW DESIGN Twin cone plug head for CMB 45 . no  stock.

£24.00

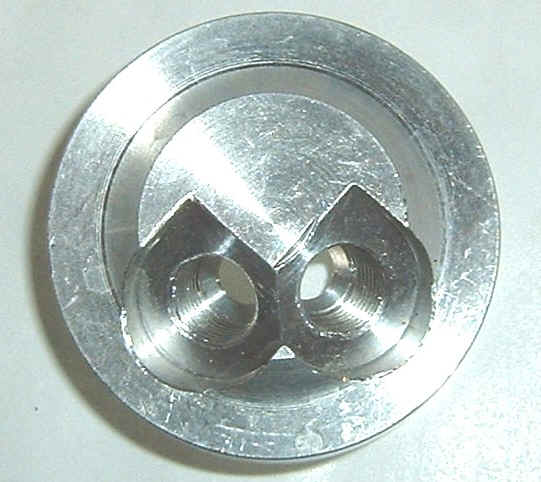

TCH91 NEW DESIGN. Twin cone plug head for CMB 91RS  £29.00
HS2105 . 0.05mm (.002" )head shims  for 21 engines. 2 shims £2.50
HS4505 . 0.05 (.002") head shims for CMB 45 all versions.  2 shims £2.50
HS9005 . 0.05 (.002") head shims for CMB 90 and 91.  2 shims £2.50
